How to create a button link

How to create a button link

Button Link: Used to link the application with any other type of project application. In this type of link a button is used as a link between applications.

How to do a button link


  • Make a link button in your application.



  • Set the button as a link button.



  • Click in the "link" blue button.

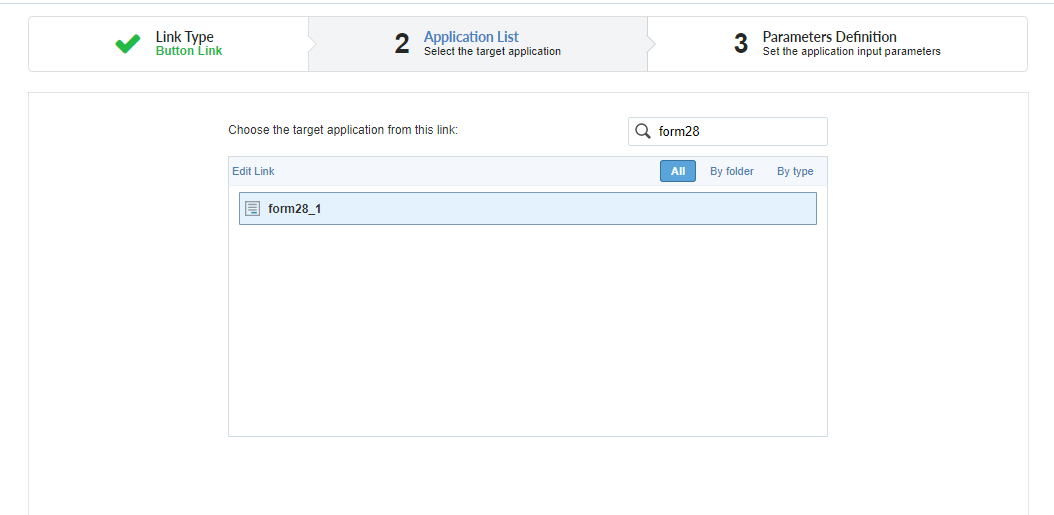

  • Choose the target application.

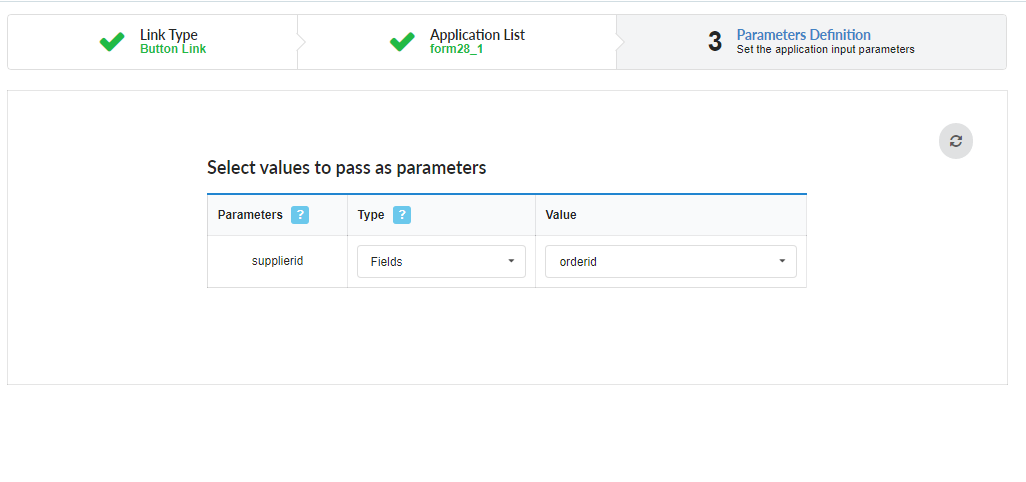

  • Set the parameters.

Parameter Types:

Field: Used to pass the value of an application field as a parameter.

Fixed value: Used to pass a fixed value as a parameter.

Global variable: Used to pass the value of a global variable, used as a parameter.

No value: by choosing this option no value will be passed as a parameter.



  • Set the properties of the link and save.

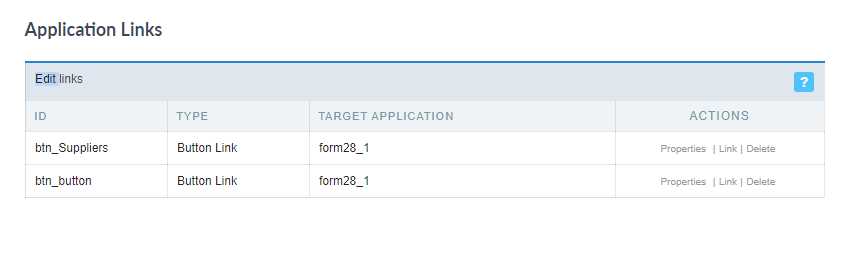

  • It's still possible alter the settings defined and delete a link created.

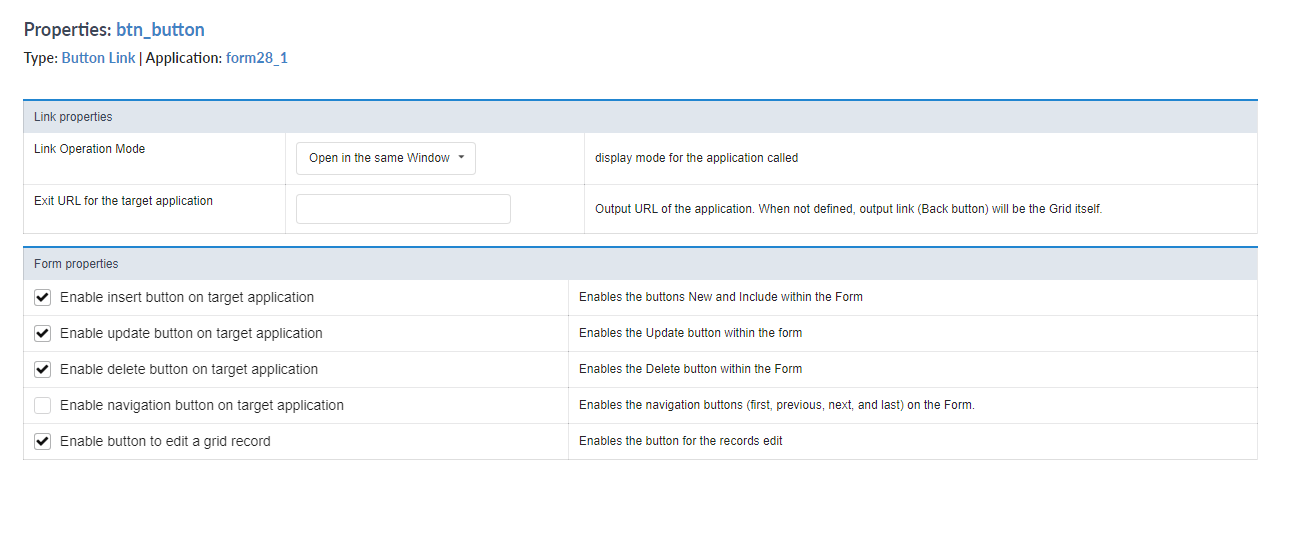

    Properties: Opens the already defined link properties, which changes link behavior, positioning, link opening mode.

    Link: Changes a target application and its parameters.

    Delete: Deletes the link created.
