How to create a field link

How to create a field link

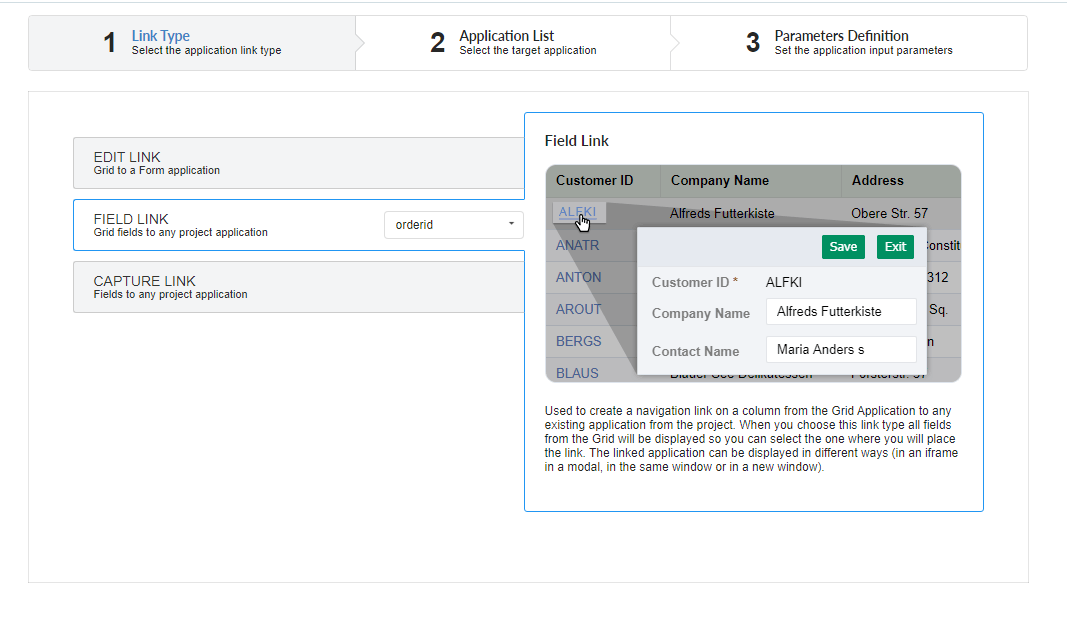

Field Link: Used to create a navigation link in a grid column for any existing project application. When you select this type of link, all grid fields will be displayed in a select so that you can select the one to place the link on. The application when accessed by the link can be displayed in different ways (in an iframe in a modal, in the same window or in a new window) to do so just by setting in the link properties.

How to do an application link:

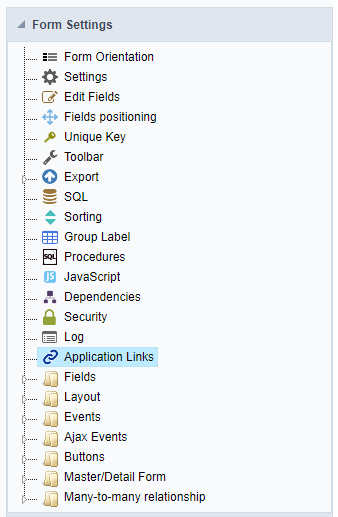

  • Open your application and go to the “Application Links” on the side menu.

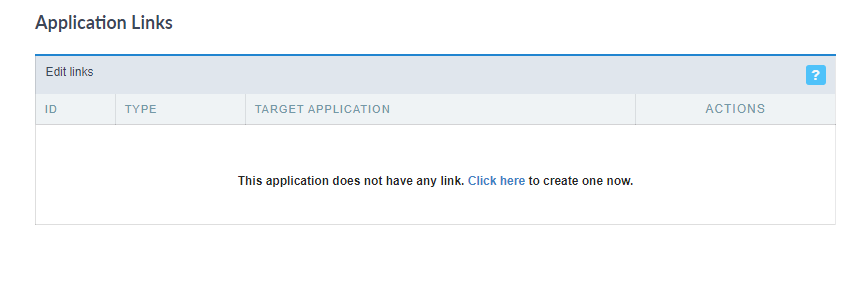

  • Click the "click here" link or "create new link" to create a new link.


How to do a field link from a grid:


  • Choose the field link, set the field of link, and click next.

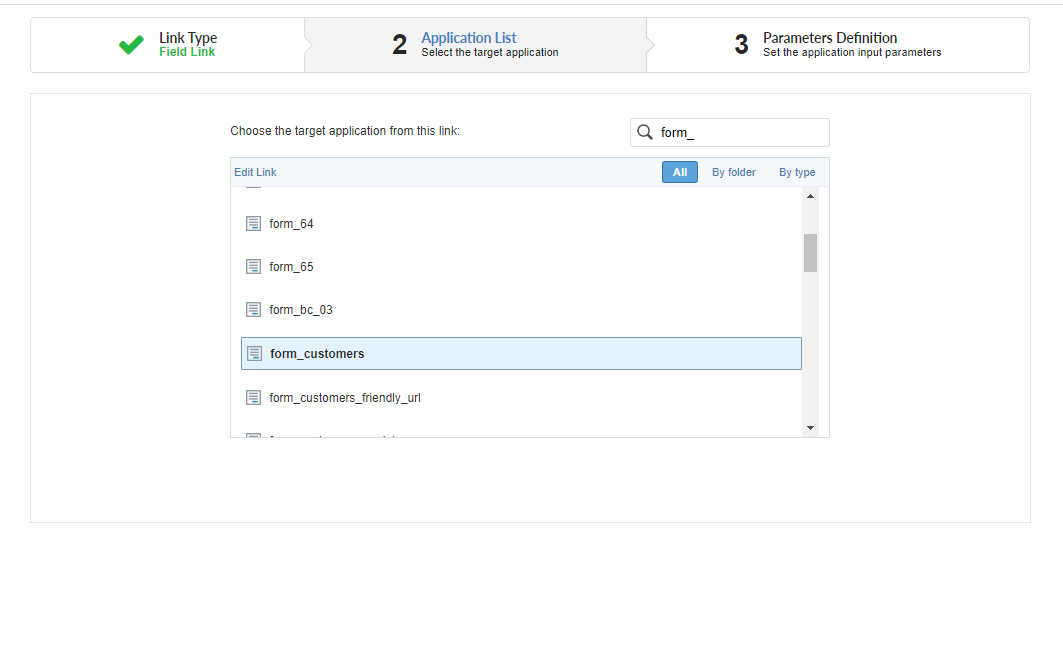

  • Choose the target application and click next.



  • Set the parameters and click confirm.

Parameter Types:

Field: Used to pass the value of an application field as a parameter.

Fixed value: Used to pass a fixed value as a parameter.

Global variable: Used to pass the value of a global variable, used as a parameter.

No value: by choosing this option no value will be passed as a parameter.

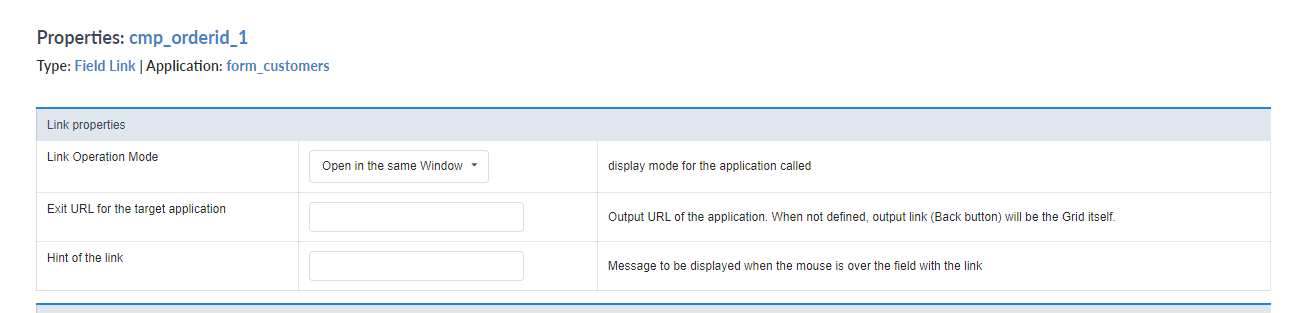

  • Set the properties.

  • Em modo de operação você define como a aplicação de destino será exibida.

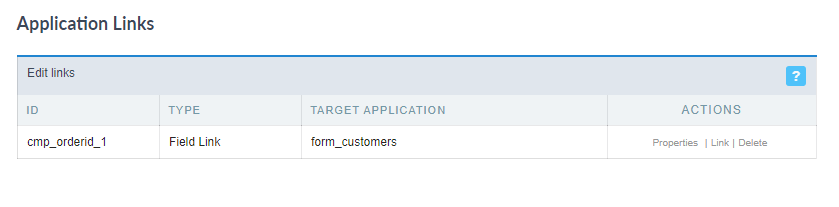

After these steps, the field will be linked to the target application.


  • It's still possible alter the settings defined and delete a link created.



Properties: Opens the already defined link properties, which changes link behavior, positioning, link opening mode.

Link: Changes a target application and its parameters.

Delete: Deletes the link created.
