Oracle Connection - Scriptcase 9 - Linux 64 Bits

Oracle Connection - Scriptcase 9 - Linux 64 Bits

This procedure will only work if you have a Scriptcase manual installation in your server.

To connect with Oracle in a Linux System, we must follow these steps below:

Step 1 -  Installing these packages:

UBUNTU/DEBIAN
CENTOS/RHEL
- sudo apt-get update
- sudo apt-get install libaio1
- sudo apt-get install libncurses5
- sudo apt-get install alien
- sudo apt-get install gcc-multilib g++-multilib
- sudo apt-get install libpam0g
- sudo apt-get install unixodbc-dev unixodbc


- sudo yum update
- sudo yum install libaio-devel
- sudo yum install libaio
- sudo yum install glibc
- sudo yum install compat-libstdc++-33
- sudo yum install glibc-devel
- sudo yum install libstdc++
- sudo yum install pam
- sudo yum install ncurses-devel
- sudo yum install unixODBC


Step 2 - Install the Instant Client:

Download the Instant Client version compatible with the archicteture x64:

UBUNTU/DEBIAN
CENTOS/RHEL
- sudo alien oracle-instantclient12.1-devel-12.1.0.2.0-1.x86_64.rpm
- sudo alien oracle-instantclient12.1-basic-12.1.0.2.0-1.x86_64.rpm
- sudo dpkg -i oracle-instantclient12.1-basic_12.1.0.2.0-2_amd64.deb
- sudo dpkg -i oracle-instantclient12.1-devel_12.1.0.2.0-2_amd64.deb
- sudo yum install oracle-instantclient12.1-basic-12.1.0.2.0-1.x86_64.rpm
- sudo yum install oracle-instantclient12.1-devel-12.1.0.2.0-1.x86_64.rpm

Step 3 - Copy the extension to the PHP extensions directory:

Download and extract the attached file(oci8.zip) and move this file in the PHP extensions directory.

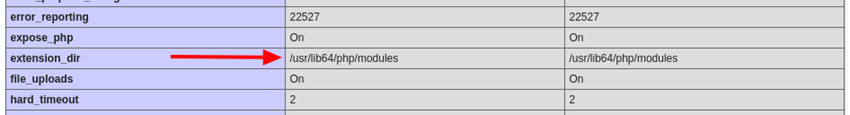

Accessing the info.php file, search for the line extension_dir. This line will inform the exact path to the PHP extensions.


Step 4 - Edit the php.ini file:

Now that the extension was pasted at the directory, you will need to add at the bottom of the php.ini file this line below:

extension=oci8.so


Step 5 - Declare the environment variable responsible to identify the Oracle library:

Now it is necessary to declare the variable LD_LIBRARY_PATH in the responsible file for your system environment variables.

Check the path according to your System:

UBUNTU/DEBIAN
CENTOS/RHEL
- sudo nano /etc/apache2/envvars
- sudo nano /etc/sysconfig/httpd


The path to the library will depend on your installation. However, by default the path might be the same as this example:

Following the same example from php.ini, you will need to add just this variable at the bottom of the file with this syntax:

export LD_LIBRARY_PATH=/usr/lib/oracle/12.1/client64/lib/

If you are using CentOS/RHEL, you don't need to use the 'export' before the variable.


After doing all these procedures, you will need to restart your apache service.

UBUNTU/DEBIAN
CENTOS/RHEL
- sudo service apache2 restart
- sudo systemctl restart httpd
