Fixing the Oracle Connection Error: ORA-12154

Fixing the Oracle Connection Error: ORA-12154: TNS:could not resolve the connect identifier specified

To fix this error when connecting to an Oracle database, follow the steps below:

1. Create the tnsnames.ora file

Create a file named tnsnames.ora with the following content:

REALDB =

  (DESCRIPTION =

    (ADDRESS = (PROTOCOL = TCP)(HOST = YOUR_IP_OR_HOST)(PORT = YOUR_PORT))

    (CONNECT_DATA =

      (SERVER = DEDICATED)

      (SERVICE_NAME = YOUR_SERVICE_NAME)

    )

  )

Replace YOUR_IP_OR_HOST, YOUR_PORT, and YOUR_SERVICE_NAME with the actual connection details.

2. Save it to the correct directory

Save the file to the following path:

C:\instantclient_19_6\network\admin

If the network and admin folders do not exist, create them manually.

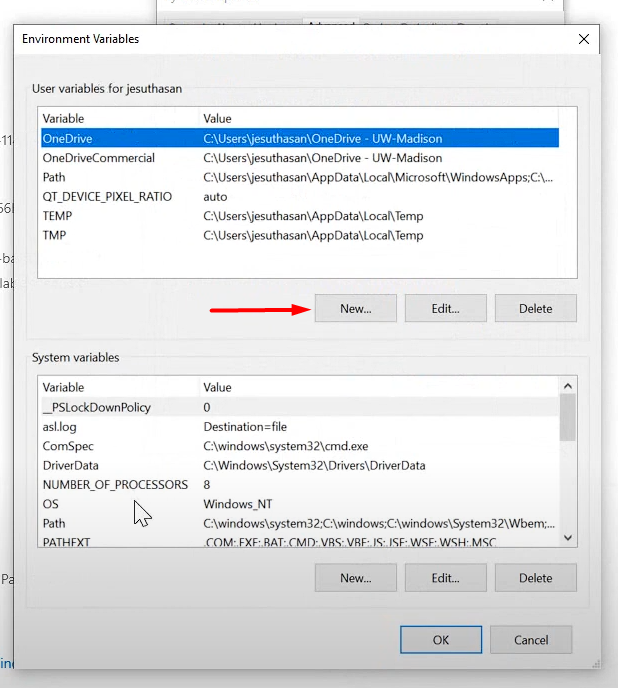

3. Set environment variables in Windows

Go to:
Control Panel → System → Advanced system settings → Environment Variables

Add or edit the following System Variables:

Add or edit the following environment variables:

• TNS_ADMIN
  Name: TNS_ADMIN
  Value C:\instantclient_19_6\network\admin

• ORACLE_HOME
  Name: ORACLE_HOME
  Vakue: C:\instantclient_19_6

4. Edit the Apache configuration

Open the file:

C:\Program Files\NetMake\v9-php81\components\apache\conf\httpd.conf

Add the following lines:

FcgidInitialEnv TNS_ADMIN "C:/instantclient_19_6/network/admin"

FcgidInitialEnv ORACLE_HOME "C:/instantclient_19_6"
These lines should be inserted between the FcgidMaxRequestLen and Timeout directives.

5. Apply the environment setup
Save the httpd.conf file after adding the FcgidInitialEnv variables.
Restart your computer so the environment variables (TNS_ADMIN and ORACLE_HOME) are correctly applied.

6. Create the connection in Scriptcase
pen Scriptcase and go to the database connection creation screen.
Select the desired Oracle driver.
In the "Database" field, enter the name defined in the tnsnames.ora file (e.g., REALDB).

If everything is configured correctly, the connection to the Oracle database will be established successfully.
